Servo Motor Siemens 1FT6044-4AK71-4EB0

Siemens 1FT6044-4AK71-4EB0 Servo Motor

Alpha Gearbox Servo motorun üzerinde bulunmaktadır.

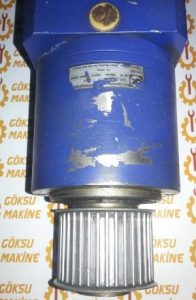

Wittenstein -Alpha Gear LP090-M01-10-111-000 – Gearbox
ALPHA GEARBOX LP 090-M01-10-111-000

Mn=2.55 Nm   6000/min 336VY

M=4.1 Nm   3000/min 168VY

Mo=4.15/5 Nm Io(eff)=4.85/5.85A  60/100 K

IMB5 IP64

Brake 24V-17.6W

Absolute-Encoder F01 2048S/R

SIMOTICS S SYNCHRONOUS SERVOMOTOR 1FT6 5.0 NM, 100 K, 6000 RPM NATURAL AIR COOLING; IM B5 (IM V1, IM V3) FOR POWER AND SIGNAL CONNECTOR OUTGOING CONNECTOR DIRECTION AXIAL, DRIVE END ABSOLUTE ENCODER ENDAT 2048 P/REV (ENCODER A-2048); PERFORMANCE REDUCTION BY 10% DUE TO ABSOLUTE ENCODER; WITH FITTED KEY, ACCURACY TOLERANCE N, W. HOLDING BRAKE VIBRATION SEVERITY GRADE N, DIAPHRAGM SEAL (IP 64)
