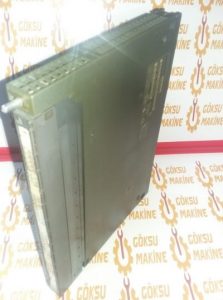

Dijital Output Modül Siemens 6ES7422-1BL00-0AA0
5 Nisan 2017
Power Supply Siemens 6ES7407-0DA01-0AA0
Power Supply
Güç Kaynağı
Siemens
Siemens Power Supply
Siemens Güç Kaynağı
Siemens SIMATIC S7
Siemens PS 407
Siemens 6ES7407-0DA01-0AA0
Açıklama
Power Supply Siemens 6ES7407-0DA01-0AA0
Siemens 6ES7407-0DA01-0AA0
PS 407 4A, 120/230V AC, 5V/4A DC
SIMATIC S7-400, PS 407 POWER SUPPLY, 4A, 120/230V AC, 5V/4A DC
Technical data
| SIMATIC S7-400, PS 407 POWER SUPPLY, 4A, 120/230V AC, 5V/4A DC | |
| Supply voltage | |
| Rated value (DC) | |
| ● 120 V DC | Yes |
| ● 230 V DC | Yes |
| permissible range, lower limit (DC) | 88 V |
| permissible range, upper limit (DC) | 300 V |
| Rated value (AC) | |
| ● 120 V AC | Yes |
| ● 230 V AC | Yes |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| Line frequency | |
| ● Rated value 50 Hz | Yes |
| ● Rated value 60 Hz | Yes |
| ● permissible range, lower limit | 47 Hz |
| ● permissible range, upper limit | 63 Hz |
| Mains buffering | |
| ● Mains/voltage failure stored energy time | > 20 ms |
| ● Mains buffering according to NAMUR recommendation | Yes |
| Input current | |
| Rated value at 110 V DC | 370 mA; at 120 V DC |
| Rated value at 230 V DC | 190 mA; at 240 V DC |
| Rated value at 120 V AC | 0.38 A |
| Rated value at 230 V AC | 0.22 A; at 240 V AC |
| Output voltage | |
| Rated value (DC) | |
| ● 5 V DC | Yes |
| ● 24 V DC | Yes |
| Output current | |
| for backplane bus (5 V DC), max. | 4 A; 100 mA base load required |
| for backplane bus (24 V DC), max. | 0.5 A; idling-proof |
| Short-circuit protection | Yes |
| Power | |
| Active power input, typ. | 52 W |
| Power loss | |
| Power loss, typ. | 20 W |
| Battery | |
| Backup battery | |
| ● Backup battery (optional) | Yes; 1x lithium AA; 3.6 V / 2.3 Ah |
| Hardware configuration | |
| Slots | |
| ● required slots | 1 |
| Potential separation | |
| primary/secondary | Yes |
| EMC | |
| Compliance with line harmonic distortion limits | |
| ● Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes |
| Degree and class of protection | |
| Protection class | 1; with protective conductor |
| Standards, approvals, certificates | |
| FM approval | Yes; Ta: 0 °C to 60 °C T4 |
| Connection method | |
| Connecting cables/cross-sections | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm |
| Dimensions | |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 217 mm |
